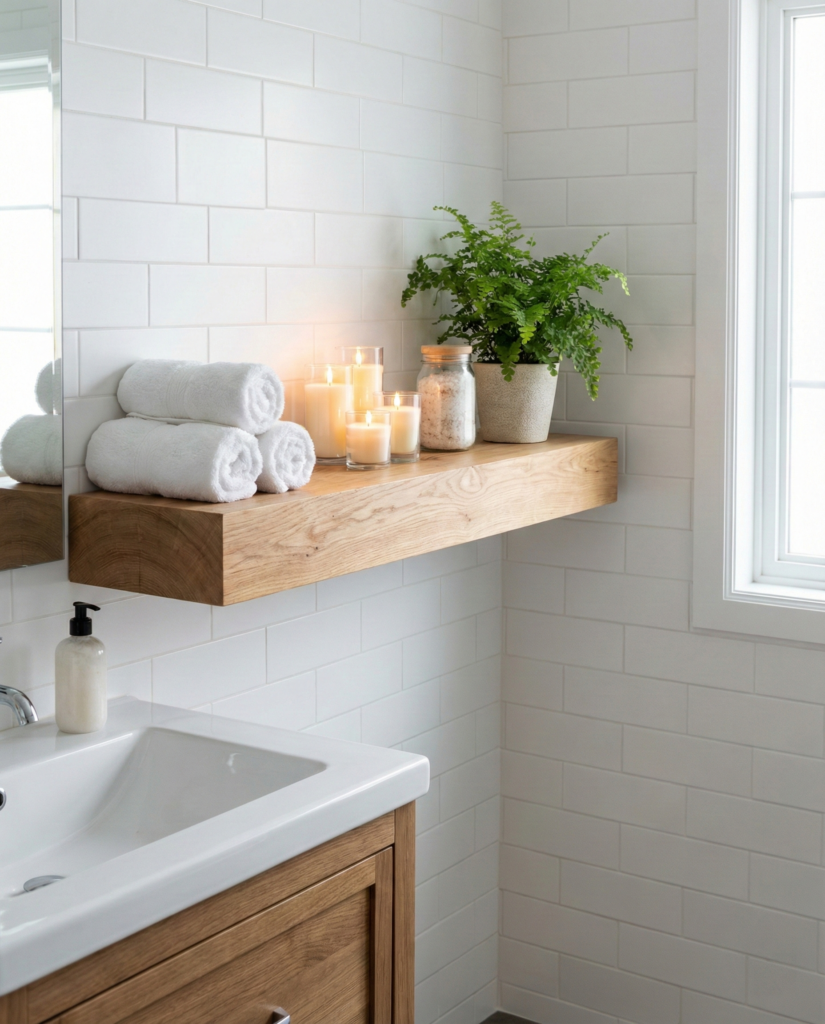

Is there anything more satisfying in home design than the clean, gravity-defying aesthetic of modern floating shelves? They offer essential storage and display space without the visual clutter of bulky, traditional hardware. They provide that sleek, minimalist vibe that instantly elevates a room, making your walls feel airy and curated.
However, if you’ve ever shopped for high-quality, solid wood floating shelves online, you’ve likely experienced sticker shock. It is not uncommon to see prices ranging from $100 to $200 for a single medium-sized shelf.
The good news? You can achieve this exact high-end look for a fraction of the cost, usually under $40 per shelf—using basic materials and tools you likely already own. This comprehensive tutorial is designed for the DIY beginner. We will walk you through the process of building solid wood floating shelves using hidden bracket rods, ensuring a sturdy result that looks professionally installed. Get ready to transform your walls with this achievable weekend project.

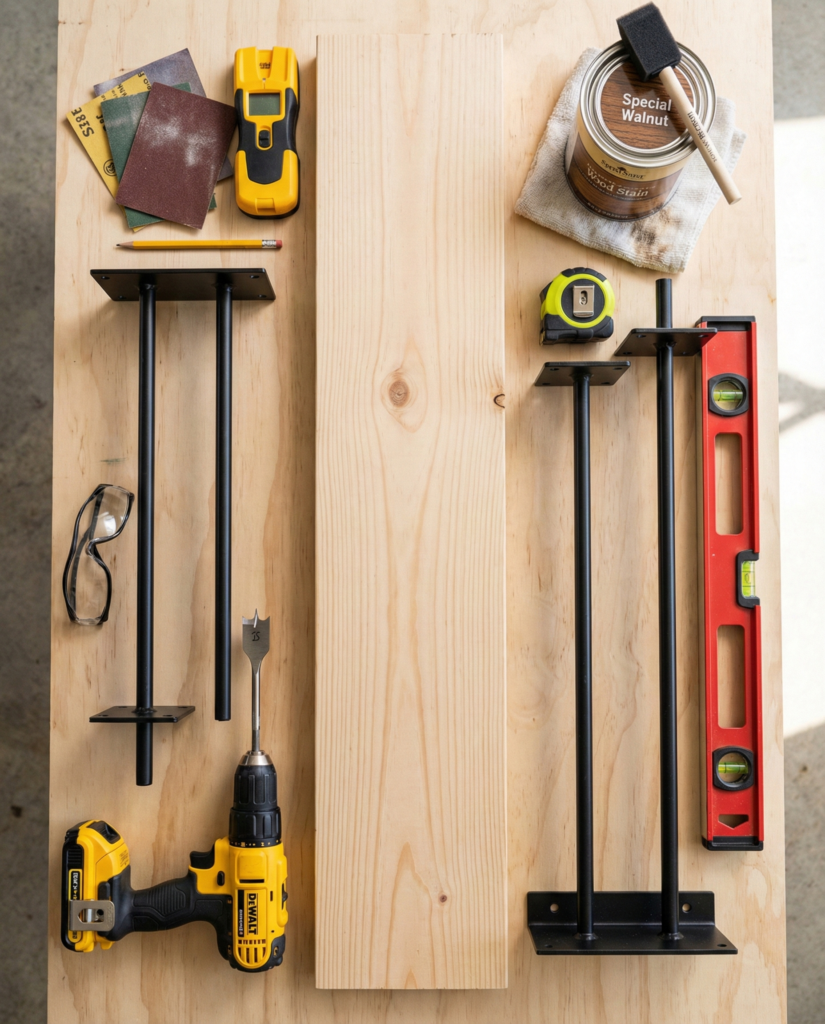

Tools & Materials Section
Materials Needed:
- Solid Wood Boards: (e.g., 2×8 or 2×10 lumber for a chunky look, or 1-inch thick hardwood for a sleeker profile. Length depends on your space).
- Floating Shelf Brackets (Hidden Rod Type): Ensure the rod length is at least half the depth of your wood board. You need at least two rods per shelf, hitting studs.
- Wood Glue: (Optional, for securing the shelf to rods if needed).
- Sandpaper: Assorted grits (80, 120, and 220).
- Wood Stain or Paint: In your desired finish.
- Polyurethane Finish: (Matte or satin recommended).
- Clean Rags or Foam Brushes: For staining and finishing.
Tools Needed:
- Drill: Corded or high-power cordless.
- Drill Bits: Standard bits for pilot holes, plus a large spade bit or auger bit matching the diameter of your bracket rods exactly.
- Level: A 2-foot or 4-foot level is ideal.
- Stud Finder: Crucial for a secure installation.
- Measuring Tape and Pencil
- Socket Wrench or Impact Driver: For driving heavy-duty bracket screws into studs.
- Saw: (Circular saw or miter saw) If you need to cut boards to length.
- Safety Glasses and Dust Mask
Estimated Cost: $30–$60 per shelf (depending on wood species and length).
Choosing Your Wood
Selecting the right lumber is perhaps the most critical step in ensuring your shelves look high-end rather than “craft-project.”
For beginners on a budget, construction-grade pine from a big-box store is the most accessible option. Pine accepts stain readily and has a rustic charm. However, construction lumber is often warped. When selecting boards, lift them to eye level and look down the length of the board, creating a sightline. You want to avoid boards that bow, cup, or twist, as these will never sit flush against your wall.
If your budget allows, consider hardwood like oak, maple, or walnut from a local lumberyard. Hardwoods are denser, more durable, and offer beautiful grain patterns that look stunning with just a clear coat.
Sizing Tip: For a substantial, modern look, choose lumber that is at least 1.5 inches thick (like standard “2x” dimensional lumber). Ensure the depth of the shelf isn’t deeper than what your specific hidden brackets are rated for usually a maximum of 8 to 10 inches deep for standard hidden rods.
Step-by-Step Building Process
1. Measuring and Cutting to Size Determine the desired length of your shelves based on your wall space. Measure carefully and mark your wood board. Using a circular saw or miter saw, make straight, clean cuts.
Pro Tip: Use a speed square as a guide for your circular saw to ensure a perfectly 90-degree crosscut.

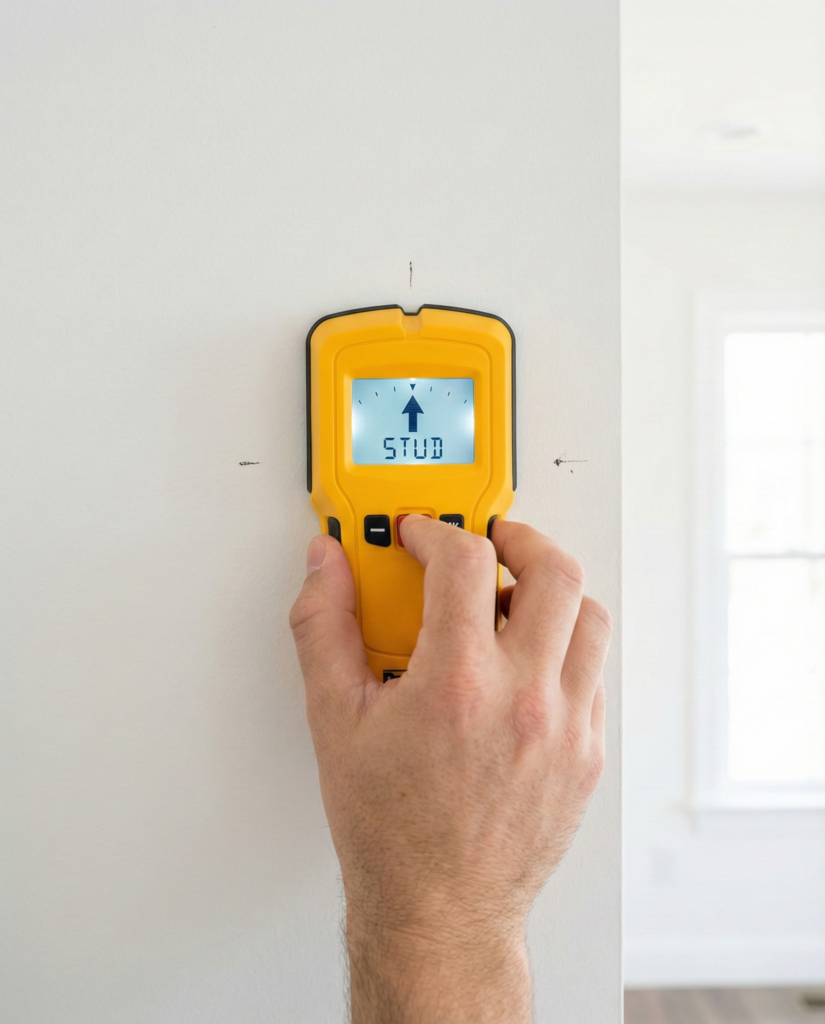

2. Finding Studs and Marking Bracket Placement Floating shelves must be anchored into wall studs; drywall anchors alone cannot support the leverage weight. Use your stud finder to locate studs in the area you want the shelf. Mark the center of the studs on the wall. Hold your wood shelf board up to the wall marks and transfer those stud locations onto the back edge of your board. This ensures the holes in your wood match the studs in your wall perfectly.
3. Drilling the Hidden Bracket Holes This is the most technically challenging step. You need to drill holes into the back edge of the wood that are perfectly straight and perpendicular to the board. If the holes are angled even slightly, the shelf will sit crooked on the wall. Select a drill bit (spade or auger) that exactly matches the diameter of your bracket rods. Measure the length of the rods and wrap a piece of tape around your drill bit at that same depth so you know when to stop drilling. Ideally, use a drill press. If using a hand drill, clamp the wood firmly to a workbench. Take your time, keeping the drill perfectly level. Drill slowly until you reach your tape marker.
4. Sanding Smooth A professional finish starts with sanding. Begin with 80-grit sandpaper to remove any rough sawmill marks or jagged edges from cutting. Progress to 120-grit to smooth the surface, and finish with 220-grit for a furniture-grade feel. Pay special attention to the end grains, which soak up more stain; sand them thoroughly to close the pores slightly. Wipe the board down with a tack cloth or mineral spirits to remove all dust.

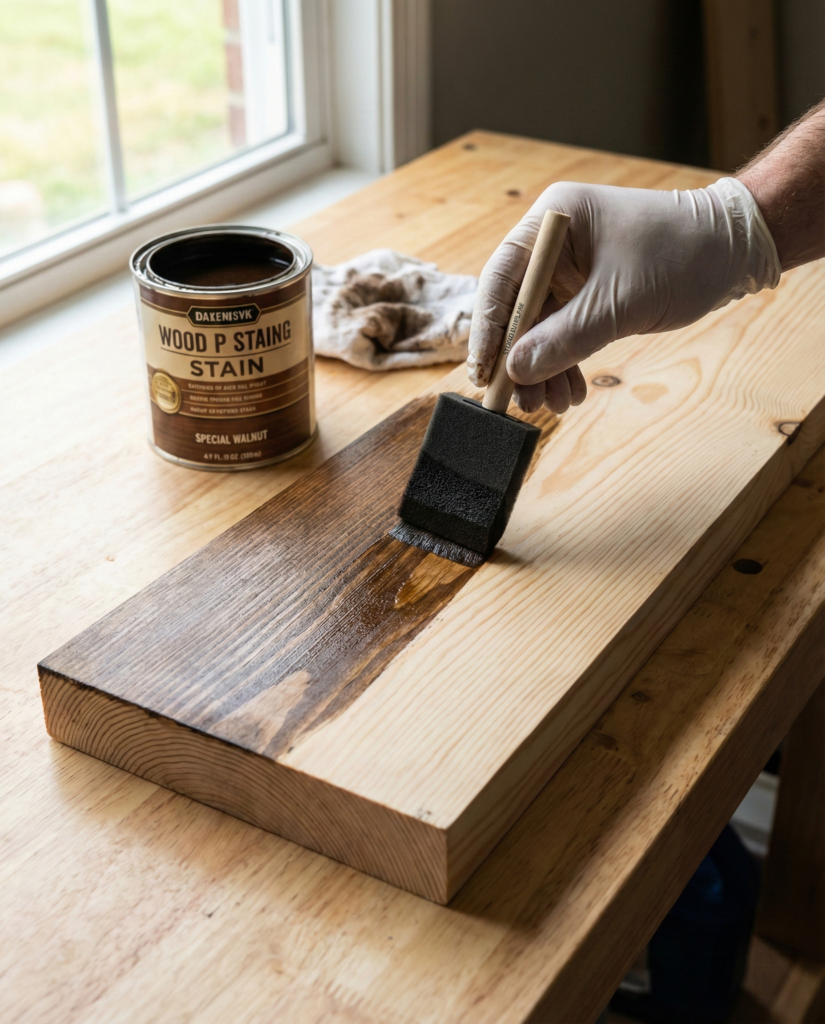

5. Staining or Painting If staining pine, apply a pre-stain wood conditioner first according to the can’s directions; this prevents blotchy, uneven color. Apply your chosen stain using a clean rag or foam brush, working in the direction of the grain. let it sit for 5–15 minutes (depending on desired darkness), then wipe off the excess with a clean rag. If painting, apply a primer coat first, followed by two coats of your desired color, sanding lightly between coats.

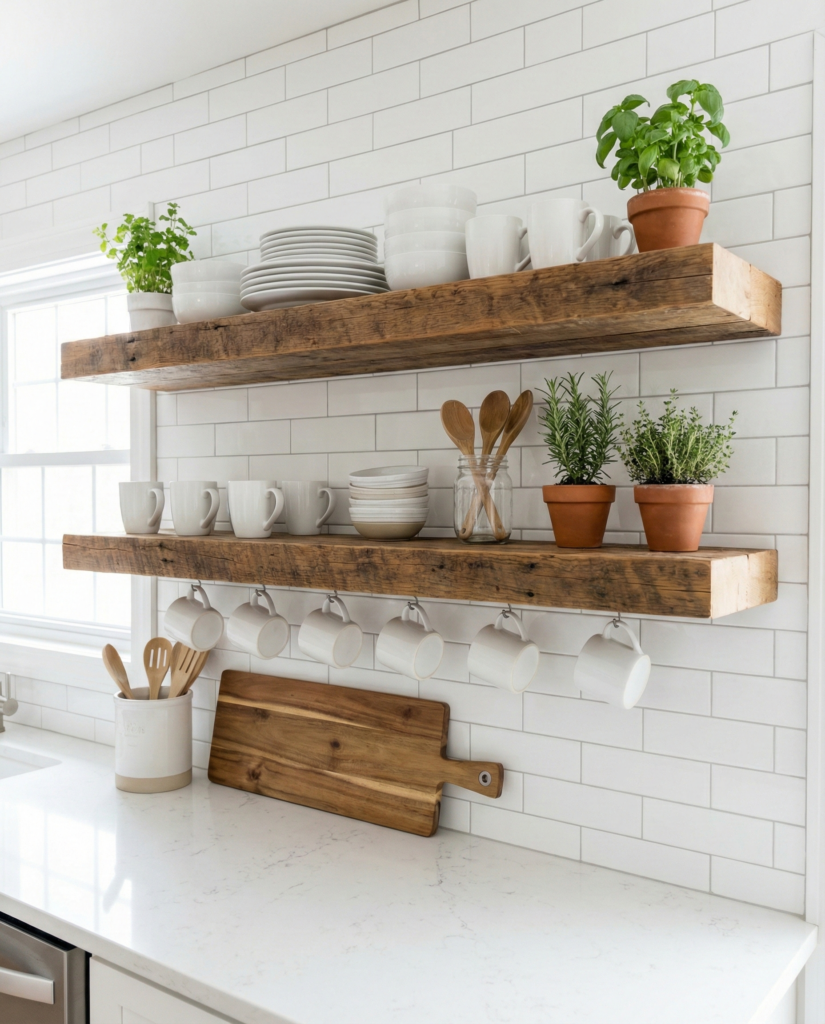

6. Applying Protective Finish Once the stain is completely dry, apply a protective topcoat. A water-based polyurethane in a matte or satin finish provides durable protection without yellowing over time. Apply 2–3 thin coats using a high-quality synthetic brush, lightly sanding with 220-grit paper between coats once dry. This step is vital if the shelves will be in a kitchen or bathroom where moisture is present.

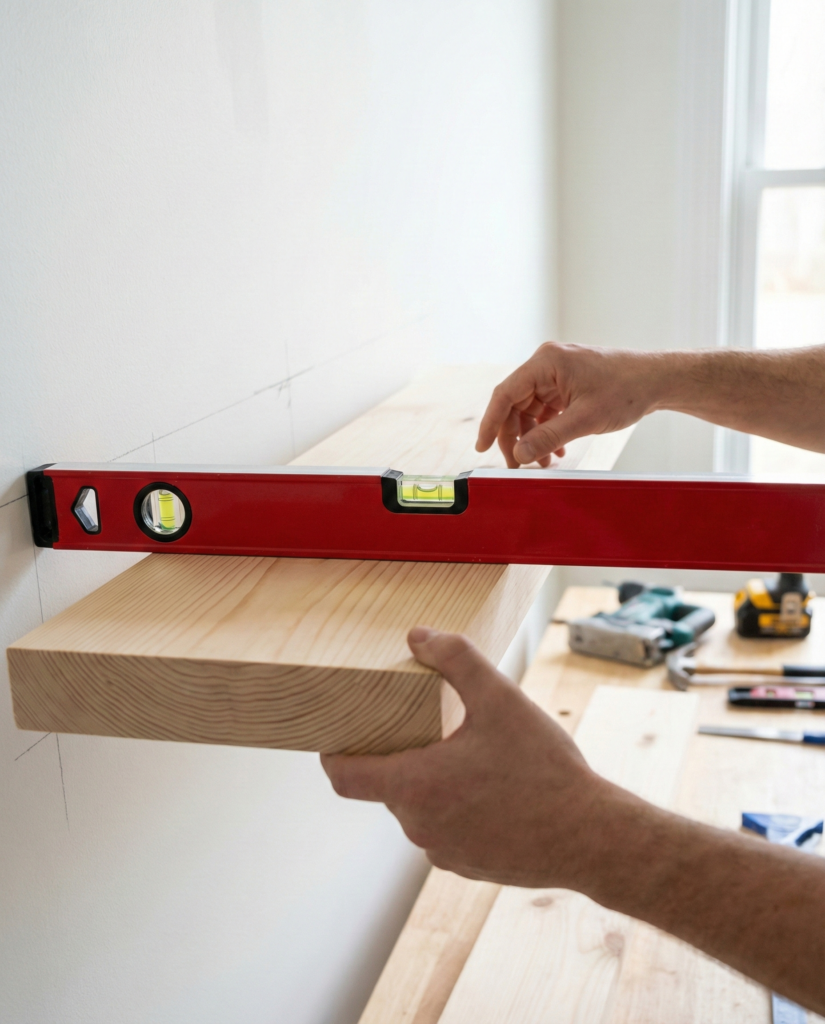

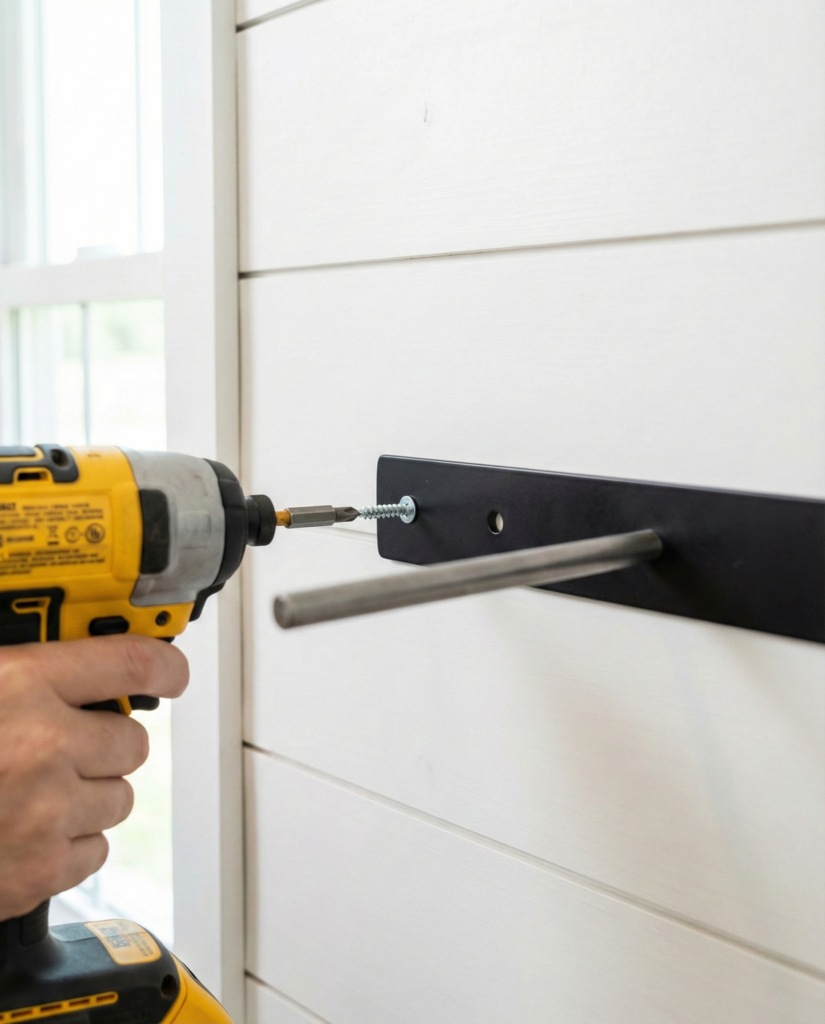

7. Installing Wall Brackets Return to the marks on your wall. Place your first bracket over a stud mark at the desired height. Use a level to ensure it is perfectly plumb. Mark the screw holes on the wall. Pre-drill pilot holes into the studs. This prevents the studs from splitting when you drive the large lag bolts. Using a socket wrench or impact driver, secure the bracket rods firmly into the studs. Once all brackets for a shelf are installed, place your long level across the rods to ensure they are perfectly aligned.

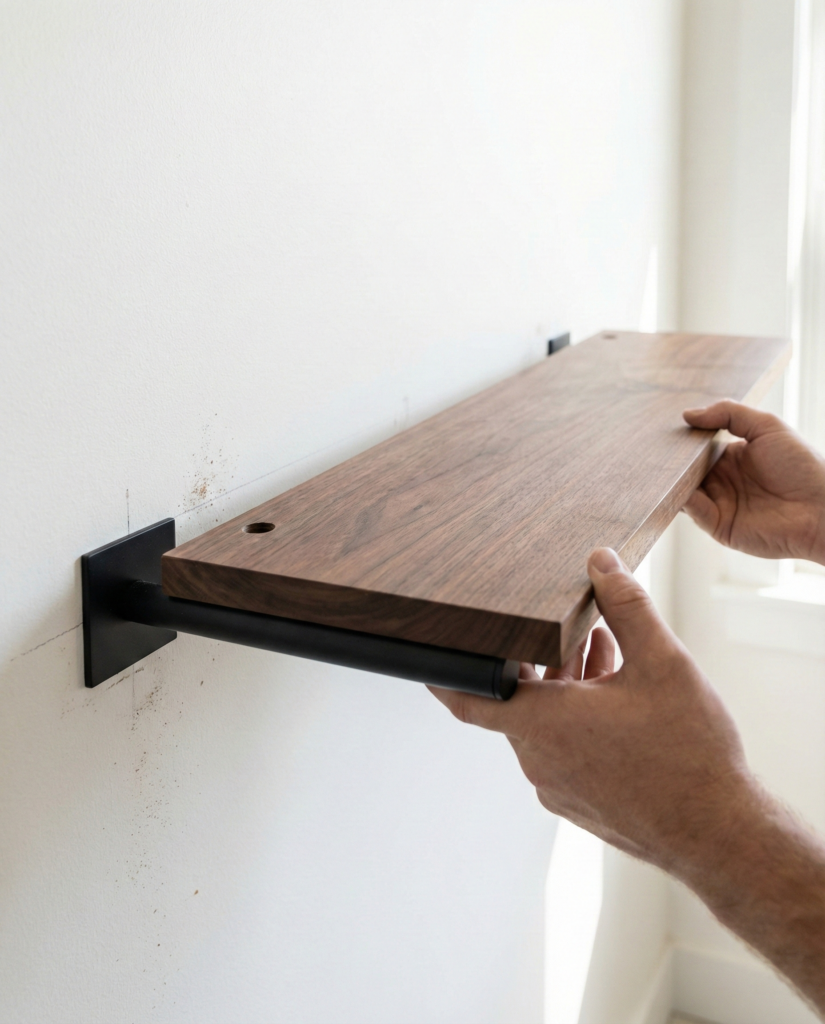

8. Mounting the Shelf The moment of truth! Line up the holes in the back of your finished wood shelf with the rods protruding from the wall. Slowly push the shelf onto the rods until it is flush against the wall. Troubleshooting: If it’s too tight, don’t force it and risk cracking the wood. Wiggle it slightly as you push. If it’s still stuck, you may need to slightly widen the opening of the holes with your drill. If the fit is too loose, wrap a small amount of electrical tape around the end of the metal rod to create a snugger friction fit.
9. Testing Weight Capacity Before loading the shelf with decor, test it. Press down firmly on the front edge of the shelf with your hands. It should feel solid with zero giving or sagging. If it feels loose, double-check that your brackets are fully secured into the studs.
10. Styling Your New Shelves Wipe down the shelves one last time and begin arranging your items. Step back frequently to assess the balance. (See the styling section below for tips!).
Customization Ideas
The beauty of DIY is making it fit your exact aesthetic.
- The Finish: For a modern farmhouse look, try a “whitewash” pickling stain on pine. For mid-century modern, choose a rich, warm tone like “Early American” or “Dark Walnut.” For a super-sleek, contemporary vibe, paint the shelves matte black or a high-gloss white.
- Edge Treatments: If you have a router, you can add a slight round-over or chamfer to the front edges for a softer look, rather than a sharp 90-degree corner.
- Layouts: Don’t just stick to one long shelf. Try stacking two or three shelves of the same length above each other, or create an asymmetrical gallery wall look by staggering shelves of different lengths.
Safety & Weight Limits Section
Proper floating shelf installation is all about physics. Because there are no visible supports underneath, the brackets rely entirely on the leverage provided by the wall studs.
- Never install these into drywall only, even with heavy-duty anchors. They will eventually pull out, damaging your wall and potentially hurting someone.
- Depth Matters: The deeper the shelf, the more leverage is applied to the bracket, reducing the overall weight capacity. Stick to depths of 6 to 10 inches for standard hidden rods.
- Weight Distribution: Be mindful of what you store. While properly installed floating shelves can hold a surprising amount (often 30–50 lbs per stud connection depending on the hardware rating), they are best suited for decor, paperbacks, and plants. Avoid storing heavy kitchen appliances, dense stacks of textbooks, or large ceramic collections on them.

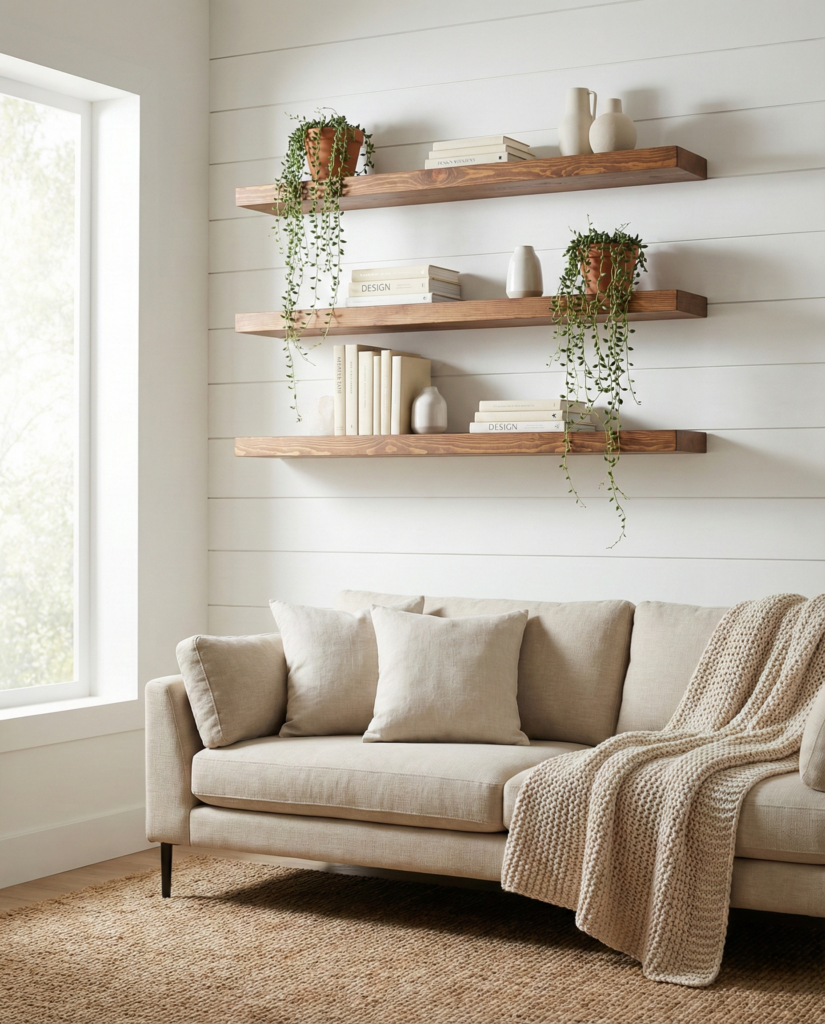

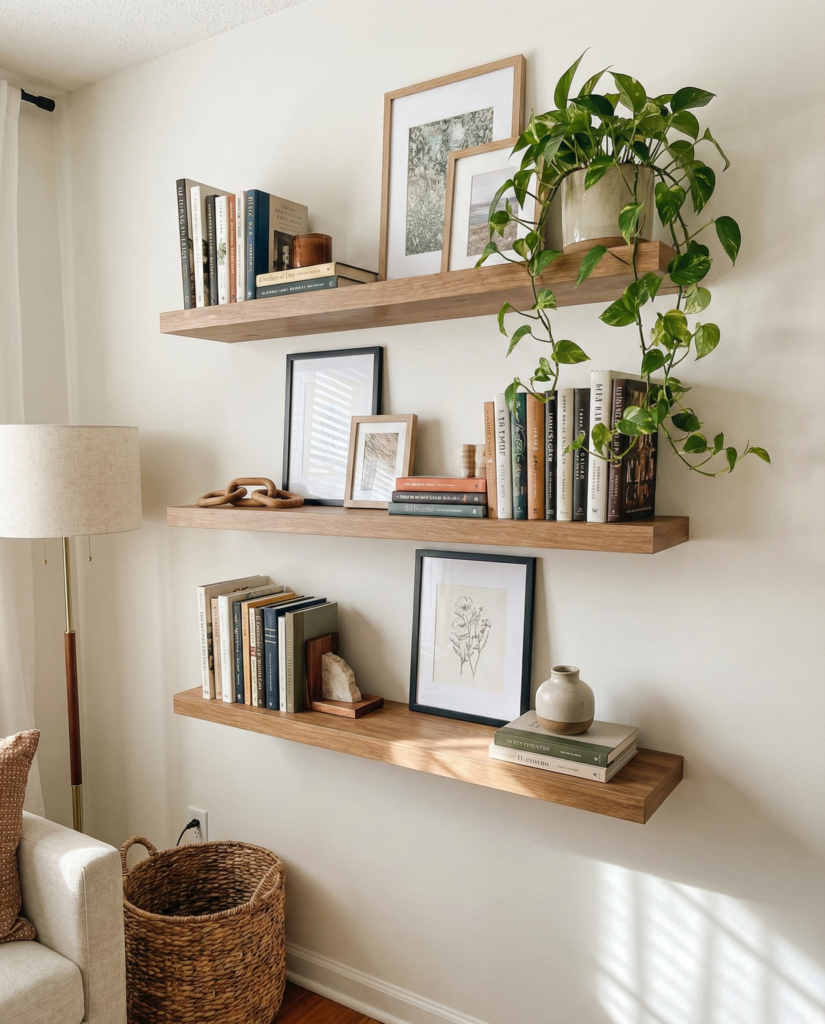

Styling Your Floating Shelves
Styling is where your hard work pays off. The goal is a curated look, not cluttered storage.
- The Rule of Three: In design, odd numbers are visually pleasing. Group items in clusters of three, for example, a tall vase, a medium stack of books, and a small decorative object.
- Vary Heights: Avoid having everything at the same eye level. Lean a tall framed print against the wall to add height, use stacks of books horizontally to create “risers” for smaller objects, and add trailing plants like pothos to draw the eye downward.
- Negative Space: Don’t feel pressured to fill every inch. Leaving empty space on the shelf lets the items breathe and highlights the beautiful wood grain of the shelf itself.
Conclusion
Building your own floating shelves is a fantastic introduction to woodworking. It requires precision, but the payoff is immense. You’ve saved hundreds of dollars and created custom pieces that perfectly fit your home. Stand back and admire your work you built that! We’d love to see your completed projects, so feel free to share photos of your new modern shelving.
